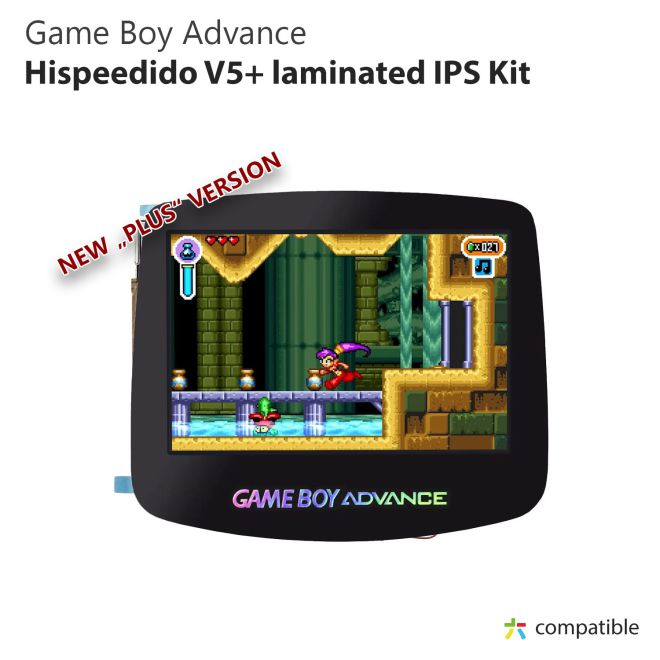

Hispeedido IPS V5+ Laminated IPS kit for Game Boy Advance (Black)

Game Boy Advance V5+ Laminated IPS kit by Hispeedido

The V5+ IPS kit from Hispeedido is the new LCD upgrade for your Game Boy Advance, offering vibrant colours, high contrast and a bright display. Thanks to the IPS LCD, the image remains consistent across viewing angles, giving your retro console a modern look. The glass lens is factory-assembled, enabling a quick and dust-free installation. The V5+ kit combines the screen lens, LCD and LCD controller into a single unit, which significantly simplifies installation. As it is controlled via touch sensors, installation is possible even without any soldering skills.

NEW: The V5+ IPS kit has been developed for improved compatibility with third-party shells such as the Premium Shells from RetroSix: RetroSix Shells , Crystal Shells and UV-printed shells . You can find the classic version for Hispeedido shell here: Hispeedido V5 IPS kit

Features

• High-contrast image with vibrant colours thanks to modern IPS LCD technology
• Compatible with all Game Boy Advance models (32-pin and 40-pin)
• On-screen display (OSD)
• 720 x 480 pixels (9 pixels to 1 pixel)
• Industrially assembled screen lens (laminated)
• Screen effects: Normal, Retro Pixel, Scanline 1, Scanline 2
• 15 brightness levels
• 8 colour modes
• Frame blending on/off
• Touch sensors (soldering optional)
• New: compatible with a range of third-party shells

Includes

• 1 x IPS kit (screen lens, LCD and LCD controller combined)
• 1 x 32-pin ribbon cable
• 1 x 40-pin ribbon cable
• 3 x wires for button control

Tips

• The kit can be installed without soldering; the integrated touch sensors can be used for control. However, to use the on-screen display (OSD), the 3 wires supplied must be soldered.
• The V5+ IPS kit is fully compatible with RetroSix shells. For Hispeedido shells, please use the classic V5 variants: Hispeedido V5 IPS kit
• The difference compared to the classic version lies in the slightly thicker separator layer. RetroSix shells have slightly thicker walls, which means the classic version gets damaged during installation. This problem has been resolved with the Plus version.

Controls

• Touch the top sensor to change the colour mode
• Touch the lower sensor to adjust the brightness

Instructions

• Installation
• Installation video (YouTube)
