RetroSix CleanPower + USB-C port for Atari Lynx I & II

RetroSix CleanPower voltage regulator + USB-C port for Atari Lynx

The original power circuit of the Atari Lynx is prone to failure, often causing irreparable damage to RAM and ASICs. The RetroSix CleanPower was developed to solve this problem - a modern, "common ground" system with boost-buck control (inverse converter) completely replaces the old circuit. Additional features such as USB-C, protection functions, CleanJuice compatibility (battery), test button and test LED extend the functionality.

Features

• Simplified electronics, easier to maintain

• Wide input voltage range, works with 2.5 - 12 V via battery springs or DC/USB-C port

• 2 A output, enough power for the console, regardless of gaming use

• USB-C power connection enables modern charging via USB-C instead of the old DC jack

• Ultra-low standby consumption - less than 100 µA, equivalent to over 5 years of standby time

• Integrated protection against overtemperature and overvoltage

• CleanJuice compatible, enables future battery modifications

• Extra features: Test button and "Power Good" LED for status indication

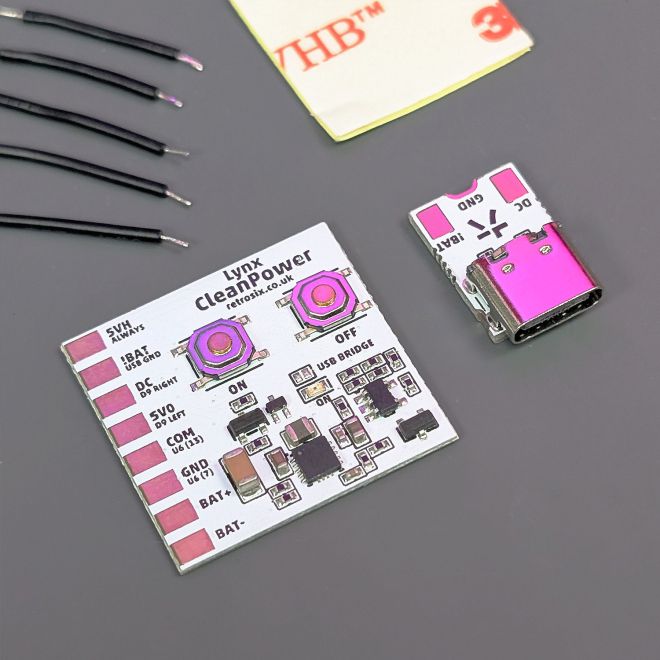

Includes

• 1 x CleanPower PCB
• 1 x USB-C PCB
• cable

Tips

• The installation is rather demanding, precise soldering is required - components must be removed, traces separated and new cables soldered on.

Instructions

• Installation (manufacturer)

Pairs well with

• CleanScreen IPS Kit for Atari Lynx I
• Recap Kit for Atari Lynx I
• Atari Lynx Power Repair Kit - Set for repairing the power supply
